Shape	Resonant Freq. kHz			Spring Const. N/m			Length µm			Width µm
	Nom.	Min.	Max.	Nom.	Min.	Max.	Nom.	Min.	Max.	Nom.	Min.	Max.
Triangular	300	200	400	0.8	0.4	1.2	42	39	45	40	38	42

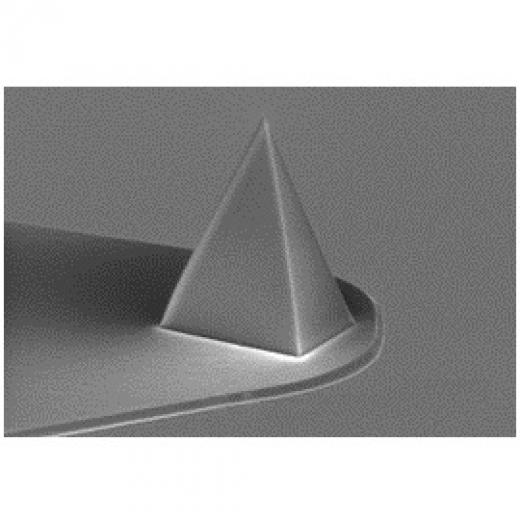

Tip Specification





Tip Schematic

Geometry:	Rotated (Symmetric)
Tip Height (h):	2.5 - 8µm
Front Angle (FA):	15 ± 2.5º
Back Angle (BA):	25 ± 2.5 º
Side Angle (SA):	17.5 ± 2.5 º
Tip Radius (Nom):	5 nm
Tip Radius (Max):	12 nm
Tip SetBack (TSB)(Nom):	5 µm
Tip Set Back (TSB)(RNG):	0 - 7 µm



Cantilever Specification





Cantilever schematic

Material:	Silicon Nitride
Geometry:	Triangular
Cantilevers Number:	1
Cantilever Thickness (Nom):	0.3 µm
Cantilever Thickness (RNG):	0.25 - 0.35 µm
Back Side Coating:	Reflective Gold
Top Layer Back:	60 ± 10 nm of Ti/Au

规格参数

商品货号： MN004515

商品品牌： Bruker

商品重量： 100克

上架时间： 2017-12-01
